Ventilation Under Screw-Pile Garden Rooms and Granny Annexes
Constantin Tiseanu • 28 October 2025

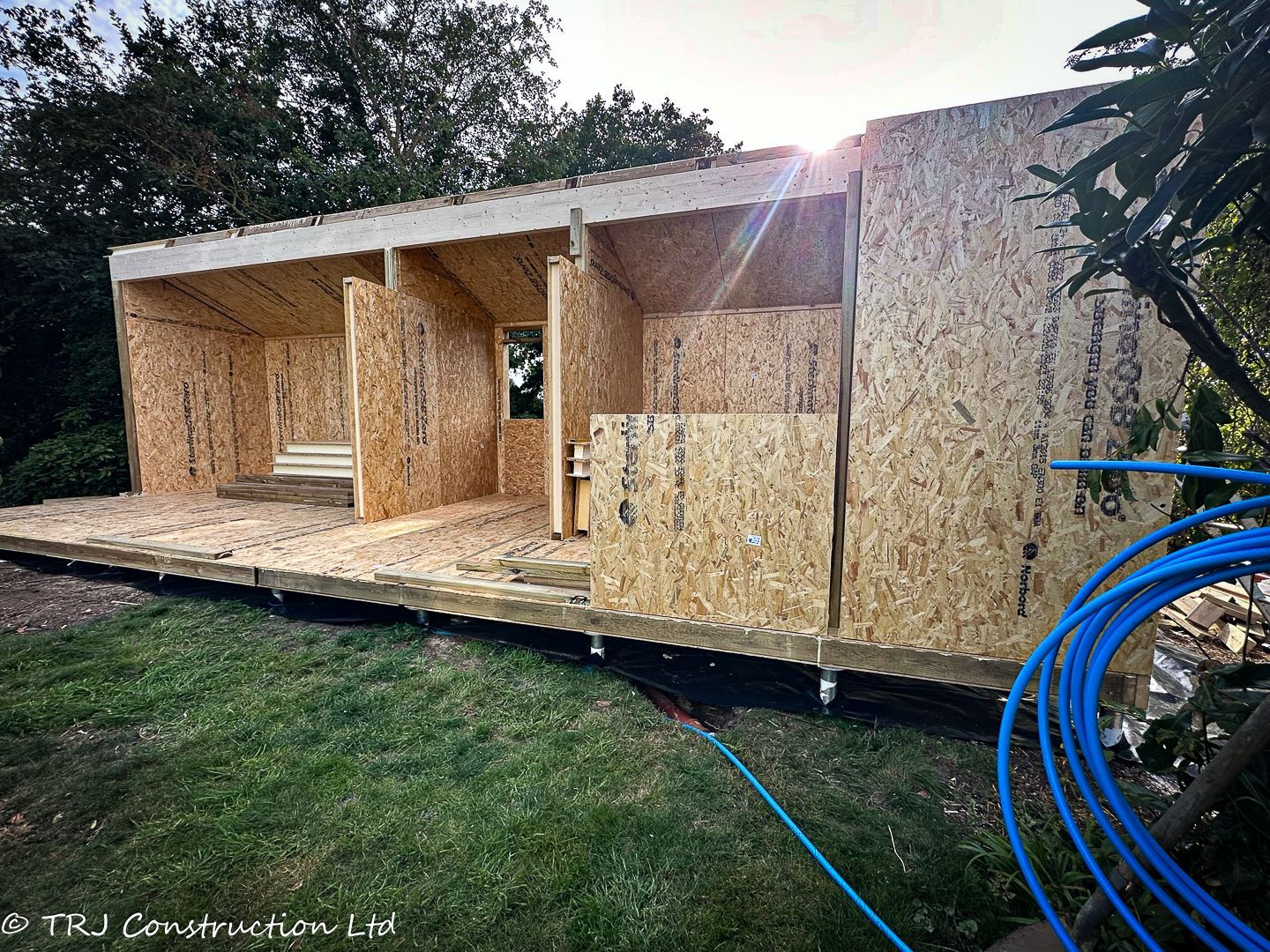

Sub-Floor Ventilation for Screw-Pile Garden Rooms
When constructing a garden room or granny annexe on screw-pile foundations, many homeowners wonder why Building Control still insists on ventilation beneath the floor. After all, the structure is elevated and doesn’t touch the ground — so why the extra step?
At TRJ Construction Ltd, we design and build fully compliant SIP-based garden buildings across Hertfordshire, Essex, and nearby counties. Here’s what’s behind the ventilation requirement and how to handle it correctly.
💧 1. Moisture Prevention
Even with a suspended SIP floor system, ground moisture can rise and condense beneath the structure. Without airflow, this trapped humidity can cause:
Timber decay and mould growth,
Damp insulation,
Long-term structural damage.
Ventilation allows natural cross-flow of air, keeping the sub-floor void dry and protecting your investment.
🧱 2. Building Regulations Requirement
Under Approved Document C (Site Preparation and Resistance to Contaminants and Moisture), all suspended floors must include adequate cross-ventilation — unless the void is fully sealed and insulated.
Building Control typically looks for:
150 mm minimum air gap between ground and floor base,
Cross ventilation using air bricks or vents on opposite sides,
Vermin-proof mesh to prevent pests entering the void.
🌬️ 3. Thermal Comfort and Air Quality
A ventilated void also reduces cold spots and helps maintain even floor temperatures. This airflow prevents moisture stagnation, which supports the long-term energy efficiency of the SIP structure.
🧩4. Exception (when it’s not needed)
You can sometimes avoid under-floor ventilation if you:
fully seal and insulate the underside (e.g. closed-cell spray foam to the SIP base), and
encase the screw-pile grid with skirting or plinth panels that are airtight and damp-proof.
In such cases, the building is treated as having a sealed void rather than a ventilated one — but Building Control usually wants written confirmation from your structural engineer or SIP manufacturer that the design manages moisture safely. (normally on les than 2.5m high small garden rooms )
That’s how TRJ Construction ensures every build passes Building Control smoothly — while keeping your SIP structure dry, efficient, and durable for years to come.
Learn when a granny annexe needs planning permission, when permitted development may apply, and what often leads to refusal.
Can you build a granny annexe in Flood Zone 2? Learn how flood risk, raised floor levels and screw pile foundations can affect planning and design.
See why thermal comfort in SIP buildings is about more than energy bills, including surface warmth, condensation control and comfort.
Learn how SIP panels deliver structural strength, rigidity and long-term stability, not just insulation, in annexes and garden rooms.
Learn why airtightness in SIP construction improves comfort, cuts heat loss and boosts energy performance all year round.

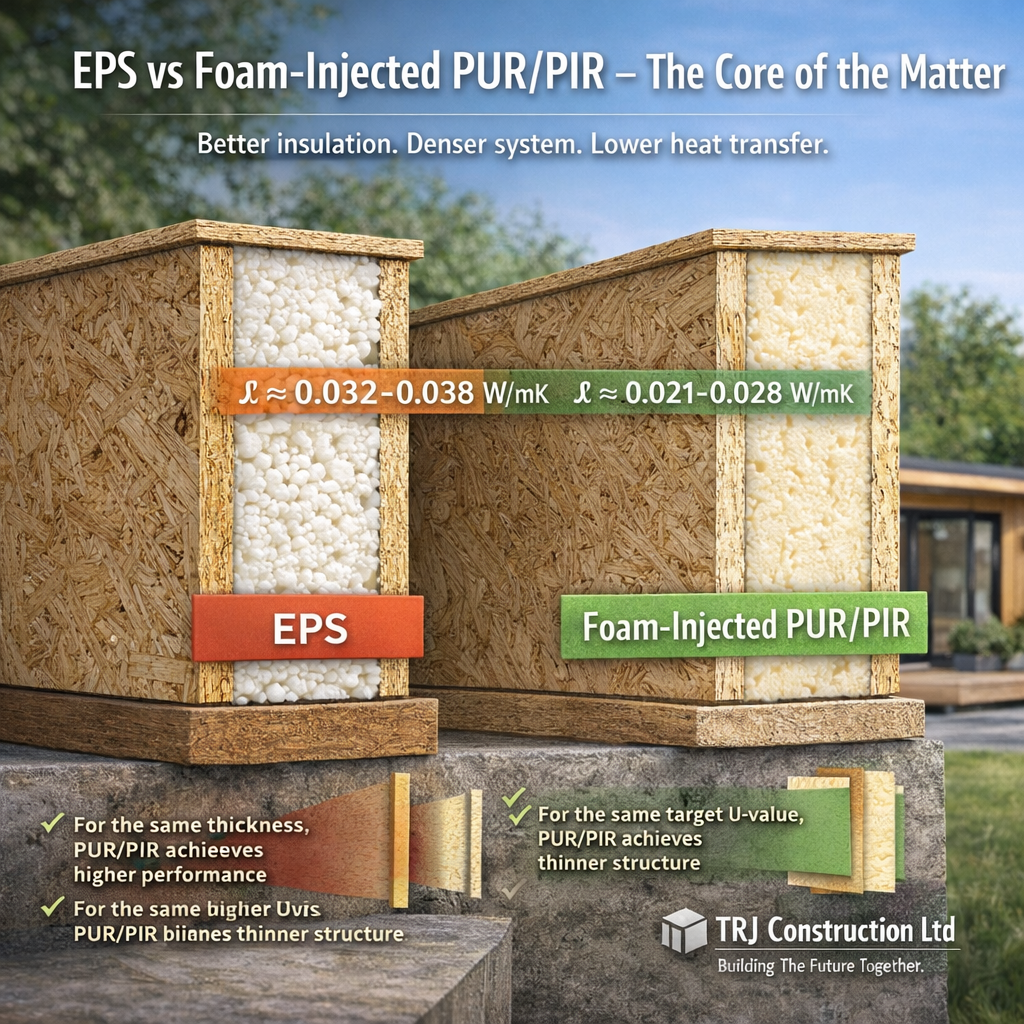

Compare EPS and foam-injected PUR/PIR SIP panels for insulation, strength, thermal performance and year-round building comfort.
Learn why SIP panel thickness affects insulation, comfort, condensation control and year-round performance in garden rooms and annexes.

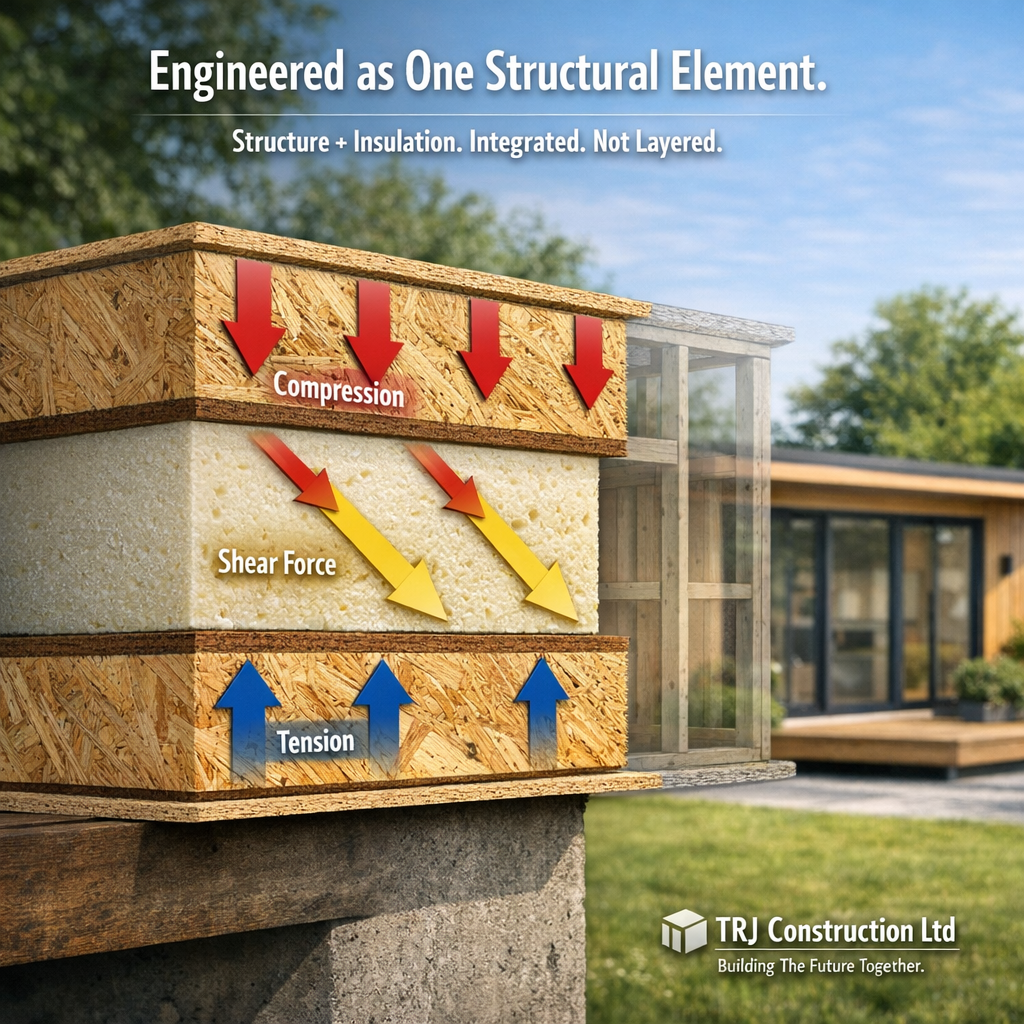

Learn what SIPs really are beyond the marketing, including structure, insulation, composite action and long-term performance.
